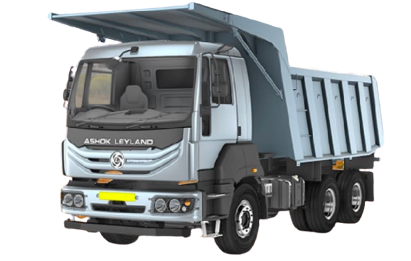

India's 1st modular tipper AVTR with multiple configuration option
New generation compact 4 cylinder engine for higher kmpl
Higher power & torque for enhanced performance
EGR + SCR strategy for BS6
Top features- Driver guidance system, Unitised bearing (O), Reverse parking assistance, Telematics, Music System (N Cabin)
GVW increased form 25 ton to 28 ton from August 2018 as per IAL norms
-
Payload increased by 3 ton from August 2018 due to IAL norms
-
14 & 16 m³ = Aggregates, Sand, Soil, Iron ore, etc. | 18 & 20 m³ = Coal, Fly ash
14 m³ = Boulder, Limestone, Marvel
-
-
-
This engine is an upgraded version of Neptune series engine which was launched in 2013
Compact yet capable to generate higher power & torque
4 cylinder engine helps in achieving higher KMPL
AL's BS6 vehicle provides better acceleration & speed in comparison to BS4
AL's BS6 vehicle provides better load pulling & climbing ability in comparison to BS4
-
-
Assists in selection of right gear for higher KMPL as power and torque nodes have changed in BS6
With Mid NOx there will be lesser formation of NOx in engine thereby AdBlue consumption will be low
Same as BSIV
ZF 9S is a proven heavy duty gearbox for mining application
ZF 9S having 1 crawler gear with higher ratio & 8 forward gear for gradual torque reduction in mining applications
-
RAR of 7.2 with hub reduction & RAR of 6.5 are suitable ratios for mining application
Engine brake has better downhill braking response and safety along with longer service brake liner life and KMPL
Semi elliptical suspension is rugged and good for any load, any surface. Parabolic suspension gives better cabin comfort & longer suspension life
Bogie suspension is the suitable suspension for heavier & twist loads situations under mining applications
Stronger & thicker frame than BS4
Polymer tank is for higher strength and low contaminations
-
11x20-18PR is the suitable option for mining applications
Higher TAW configuration is the right option for medium duty mining application
64% gradeability as per ARAI testing is excellent figure for mining applications
-
No cowl option. N cabin is premium cabin of AL
Easy access to engine & allied components for service & repairs
Driving comfort
Driving comfort
Driving comfort
AdBlue gauge, Digital clock, Average fuel economy, Battery voltage etc.
-
Better visibility of objects which are close to the vehicle in the front and the co-driver side
Easy ingress and egress
-
Standard fitment - Geo fencing, Vehicle tracking, Engine idealing + Other features
-
-
Beep alert inside cab while reversing for any sizeable object at the rear
Better visibility for any vehicle approaching from rear. Longer life than regular bulbs
No hub greasing expense & downtime for 5K hours
Protection from sunlight
-
Entertainment on the go
-
-
-
-
Kept similar as BS4
-
-
-
